The Quantity Was Delivered – But Was the Right Cargo Delivered?

quantri — Thu, 08 Oct 2026 03:24:20 +0000

500 packages were delivered.
The tally was completed.
The quantity was correct.

So, is the delivery correct?

Not necessarily.

In cargo operations, confirming the quantity is only one part of delivery verification. A shipment may be delivered in full while still creating a claim because the cargo delivered was not the correct cargo.

This is where cargo identification, segregation, and delivery verification become critical.

Consider a shipment of 500 packages containing several grades or specifications of similar-looking cargo. The tally may confirm that all 500 packages were moved from the storage area to the delivery point.

But during verification, several issues may appear:

• Some packages carry incorrect or inconsistent markings.
• Different lots have almost identical external appearance.
• Cargo from different grades or specifications has been mixed together.
• Package numbers are not continuous or do not match the packing list.
• Cargo has been moved between different storage areas before delivery, making its original location difficult to establish.
• The delivered quantity matches the documents, but the package identity does not.

This creates an important distinction:

Tally answers: “How many?”
Identification answers: “Which cargo?”

For a proper delivery verification, the surveyor should not rely solely on counting packages. Depending on the nature of the cargo and the agreed scope, verification may include checking package numbers, markings, lot numbers, grade, specification, dimensions, destination, packing list references, and segregation status.

Where several grades or lots are stored together, maintaining clear segregation is particularly important. Once similar-looking cargo is mixed or relocated without proper identification, establishing exactly which cargo was delivered can become difficult—even when the final tally shows no shortage.

A delivery operation can therefore be:

Quantity correct — Identity incorrect.

And that difference can have significant commercial consequences.

A shortage is relatively straightforward to identify: the numbers do not match.

An identity discrepancy can be more subtle. The total quantity may be exactly right, while the wrong grade, wrong lot, wrong package number, or wrong destination has been delivered.

That is why cargo delivery verification should go beyond simply counting packages.

Observe. Identify. Segregate. Verify. Record.

Because in cargo operations, the question is not only whether the cargo was delivered in full—but whether the right cargo was delivered to the right destination.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

📍 Address: 1831/10/9 Huynh Tan Phat Street, Quar3wter 2, Nha Be Commune, Ho Chi Minh City, Vietnam
📞 Hotline: +84 981 600 440 / +84 918 114 742
🌐 Website: www.vietmarinecontrol.com.vn
📧 Email: survey@vietmarinecontrol.com.vn
🔵 Linkedin: www.linkedin.com/in/vm-control-234252386

The Reefer Was Set Correctly – But Was the Cargo Temperature Correct?

quantri — Tue, 06 Oct 2026 02:03:20 +0000

The reefer was set correctly. The temperature display was normal. The refrigeration unit was running. But was the cargo itself at the correct temperature?

In refrigerated cargo operations, this difference is often overlooked. A reefer container may be set to the required temperature while the cargo inside has already warmed up, partially thawed, or was loaded before reaching the required temperature. On the display, everything may appear normal. Inside the cargo, the reality can be different.

Before loading begins, a surveyor should look beyond the reefer display and verify the fundamentals:

• Is the declared cargo temperature consistent with the actual condition?
• Has the cargo been properly pre-cooled before loading?
• Are temperature readings taken at appropriate points?
• Is the cargo condition consistent with the declared requirements?
• Are there any visible signs of thawing, condensation, frost, leakage, or temperature exposure?

The set point is not necessarily the same as the actual cargo temperature. The reefer system controls the internal environment, but it cannot immediately change the temperature of cargo that enters the container above the required level.

This is why temperature evidence should be established as early as possible.

A proper reefer survey is not simply about recording the number shown on the reefer display. It should establish an objective record of the cargo condition, temperature information, reefer setting, operating condition, and relevant observations at the time of inspection.

The condition of the cargo itself is also important. Packaging, cartons, pallets, wrapping, frost, condensation, leakage, or signs of thawing may provide valuable evidence. These observations should be recorded objectively, supported by photographs and relevant temperature readings where applicable.

Once the reefer container is closed and sealed, direct access to the cargo is no longer available. During transportation, temperature conditions may change, and it may become difficult to determine whether a problem existed before loading or developed later.

This becomes particularly important when a temperature-related claim arises. The parties may review reefer temperature records, data loggers, or monitoring systems. However, these records do not necessarily establish the exact condition of the cargo at the moment it was presented for shipment.

A surveyor’s role is therefore not to assume the cause of a temperature deviation, but to preserve evidence while it is still available.

Observe. Measure. Record. Report.

A reefer can be set correctly. The refrigeration unit can be operating normally. The display can show the required temperature.

But that does not necessarily mean the cargo itself was at the correct temperature when it was loaded.

That is why proper inspection and documentation at the beginning of the transportation process matter.

The reefer was set correctly.

But was the cargo temperature correct?

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

The Vessel Was Ready – But Was the Cargo Ready to Load?

quantri — Thu, 01 Oct 2026 02:02:47 +0000

The vessel was alongside.

The holds had been inspected, the hatches were operating normally, and the vessel was ready to commence loading. The terminal was ready, too.

Yet, when the cargo on the quay was checked, one fundamental question remained:

Was the cargo actually ready to be loaded?

The answer is not always yes.

On paper, the operation may appear synchronized. On the quay, the reality can be different. Part of the cargo may still be under packing, some units may be scattered across different storage areas, identification may not be clear, or cargo may have been exposed to rain before loading.

The vessel can be ready to receive cargo while the cargo itself is not ready to go onboard.

“Ready for Loading” Is Not Just a Vessel Condition

In many loading operations, attention naturally goes first to the vessel.

Are the holds ready?
Are the hatches operational?
Is the lifting equipment available?

These are important.

But they do not answer whether the cargo is ready.

Before the first lift, a surveyor should also look at the cargo itself:

Is the declared quantity physically available and accounted for?
Is the packing complete and suitable for handling?
Are marks, numbers and identification clear?
Is the cargo in the condition declared for shipment?
Has any cargo been exposed to rain or other weather conditions?
Are lifting points and handling arrangements suitable?
Is the cargo positioned according to the planned loading sequence?

A vessel being ready does not automatically make the cargo ready.

The Pressure Starts Before the First Lift

Consider a steel cargo operation.

The vessel is ready. The crane is ready. The loading team is standing by.

But ashore, several bundles are still being prepared. Some packing is damaged. A few identification marks are unclear. Other cargo has been stored outside and exposed to rain.

The operation is under time pressure.

Once loading starts, the sequence begins to move. Stopping the operation to resolve a cargo condition or identification issue becomes more difficult, particularly when the vessel is working against a tight port schedule.

This is where a condition that looked minor before loading can become a much larger issue later.

Cargo loaded with pre-existing damage may lead to a claim at destination.

Unclear identification can create problems with quantity, grade or delivery.

Cargo not available when required can interrupt the loading sequence and result in additional handling or waiting time.

None of these issues necessarily becomes a claim. But each creates another point that needs to be controlled and recorded.

The Important Evidence Is Created Before Loading

Once cargo is lifted onboard and placed in the hold, some of the original evidence becomes difficult or impossible to observe.

A small deformation may be hidden.

Packing may be removed or damaged during handling.

Identification marks may no longer be accessible.

The original position of the cargo on the quay may no longer be clear.

When a dispute arises later at the discharge port, one of the first questions is often:

What was the condition of the cargo when it was presented for shipment?

This is why pre-loading observations matter.

The surveyor’s role is not to stop the operation or create unnecessary delay. It is to establish, as objectively as possible, what was actually presented for loading before the first lift took place.

That baseline can become important when the same cargo is later found damaged, short, incorrectly identified or otherwise disputed.

Ready to Load Is a Shared Condition

Cargo readiness is not simply a matter of having the cargo somewhere in the terminal.

It means having the right cargo, in the right condition, properly identified, available at the right place and at the right time for the loading sequence.

That is where the vessel operation and the shore-side cargo operation meet.

The vessel may be ready.

The crane may be ready.

The crew may be ready.

But if the cargo is not, the loading operation is not truly ready to begin.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

The Seal Was Intact – The Cargo Was Not Necessarily Secure

quantri — Mon, 28 Sep 2026 01:52:12 +0000

The container arrived with the seal intact.

The seal number matched the shipping documents. There were no obvious signs of tampering, and the container appeared to have remained closed throughout the transit.

When the doors were opened, however, the cargo was found in a different condition.

Some packages had shifted. Stacks had leaned against the container walls. In more serious cases, heavy units had moved from their original positions, causing crushed packages, deformation and other damage.

The first reaction is usually predictable:

“But the seal was intact.”

It is a valid observation. But it answers only one question.

It tells us about the condition of the container doors. It does not tell us what happened to the cargo inside.

What Does an Intact Seal Actually Prove?

After many years surveying container cargo, I have seen this misunderstanding repeatedly.

An intact seal, with the correct seal number, is useful evidence that the container was not apparently opened after sealing.

But it does not confirm how the cargo was packed or secured.

A seal does not:

distribute the cargo weight;
control the centre of gravity;
provide blocking or bracing;
replace suitable dunnage;
prevent cargo from shifting during transport.

These are separate issues.

When a cargo damage claim arises, treating an intact seal as evidence that the cargo was properly secured can lead the investigation in the wrong direction.

The Important Evidence Is Created Before the Seal Goes On

Once the container doors are closed and sealed, the original arrangement inside is no longer visible.

That is why the condition of the cargo before closing can be critical.

A surveyor should be looking at practical questions:

How was the cargo positioned and stacked?
Where were the void spaces?
Was suitable blocking, bracing or dunnage provided?
Were heavy or high-centre-of-gravity units adequately restrained?
Were the securing arrangements appropriate for the cargo and its intended transport?

Photographs taken during stuffing, packing records and other contemporaneous evidence can become particularly important later.

When a claim is reported at destination, the surveyor is often comparing two different moments: the cargo condition before the doors were closed and the cargo condition when those doors were opened again.

The better that evidence is recorded at origin, the more reliable that comparison can be.

Cargo Can Move Without the Door Ever Being Opened

During ocean and inland transport, cargo is exposed to vibration, acceleration, braking, pitching, rolling and other dynamic forces.

If the cargo is not adequately restrained, movement can occur even though the container remains sealed.

A small amount of movement may create additional clearance. Repeated movement can then cause packages to shift further, press against adjacent cargo or container structures, or place additional loads on securing materials.

By the time the container reaches the consignee, the seal may still be completely intact while the cargo arrangement has changed significantly.

This is why the surveyor should not stop the investigation at the seal.

The seal may explain the condition of the doors.

It does not explain the condition of the cargo.

Seal Integrity Is Not Cargo Security

The distinction is straightforward:

Seal integrity concerns whether the container remained closed.

Cargo security concerns whether the cargo was adequately positioned and restrained inside the container.

One does not prove the other.

For a surveyor, the important question is therefore not simply whether the seal was intact upon arrival.

It is whether the cargo was properly positioned and secured before the container was closed, and whether there is sufficient evidence to establish that condition afterwards.

Because an intact seal tells us that the door was not apparently opened.

It does not tell us what happened to the cargo inside.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

The Cargo Was Counted – The Shortage Still Happened?

quantri — Fri, 25 Sep 2026 03:22:28 +0000

The tally sheets were complete.

Every package had been counted during discharge, cross-checked and signed off. On board the vessel, the numbers looked clean. The cargo appeared fully accounted for.

Several days later, the receiver reported a shortage.

The immediate reaction was predictable:

If the tally was correct, where did the cargo go?

In many cases, the answer is not found by counting the same numbers again.

Because a tally proves what was counted at one specific stage of the operation.

It does not prove what happened to the cargo after that.

Counted Is Not the Same as Handed Over

Consider a normal discharge operation. Cargo comes ashore and is tallied at the quay. The tallyman records each package before the cargo moves to a staging area, onto trucks, or into temporary storage.

The quantity off-loaded may be entirely correct. But when did responsibility actually change hands?

That is where a proper investigation needs to go:

Was the cargo kept together and secure?
Could each package still be identified?
Was there an intermediate count before transport?
Who controlled the cargo while it was waiting?

These questions often become far more critical than simply reopening the original ship-side tally.

The Gap Between Vessel and Truck

A package can be counted accurately and still become difficult to trace.

After discharge, cargo may be regrouped, shifted between stacks, loaded onto different trucks, or temporarily held at the terminal. At each stage, a new record appears — package numbers, truck plates, stack locations, warehouse references, or delivery receipts.

The physical cargo has moved. The paperwork has changed.

And if those records cannot be cleanly connected, an evidentiary gap begins to form.

This is why geo-tagged photographs, clear package marks, and accurate time references matter. They do more than show that cargo was present; they help establish which cargo was present, where it was, and when it was observed.

Tally Is Not Custody

This distinction is simple, but it is frequently overlooked in cargo claims.

A tallyman counts. A tally sheet records the count.

Neither document, by itself, proves continuous custody of the cargo after that counting event.

Imagine 1,000 packages recorded as discharged, while the receiver at the final destination later confirms only 997.

The original tally may still be entirely correct.

The surveyor’s job is to examine the three-package gap — not simply doubt the first count:

Where were the packages immediately after discharge?
Who had physical control of them?
When were they moved?
Could they still be individually identified?
Was there a documented, signed handover?

The purpose is not to assign blame prematurely.

It is to establish where the evidence remains strong — and where it begins to break down.

Evidence Is Strongest Before the Dispute

Once a shortage is officially reported, everyone starts scrambling through documents. By then, some of the most useful physical evidence may already be gone.

A photograph taken during a critical handover can be more valuable than a detailed explanation given several days later. A visible package mark can carry more evidentiary weight than a generalized statement that “all cargo was accounted for.”

For a surveyor, the most vulnerable points are the transitions:

Vessel → Quay → Truck → Warehouse → Receiver

This is where cargo changes hands, locations shift, paperwork multiplies — and evidence can become increasingly thin.

The Surveyor’s Job Goes Beyond Counting

Counting remains fundamental.

But the harder question is:

What does that count actually prove?

A tally establishes what was observed at one particular stage of the operation. It does not automatically establish what happened afterward.

That requires tracing the cargo through its actual movements, identification, location and custody.

When a shortage turns into a formal claim, an experienced surveyor goes back to the operation itself.

Not just to the figures on the page.

But to the moments between them.

Because a shortage is rarely explained by two numbers alone.

Somewhere between them, something happened.

The surveyor’s job is to identify where the evidence changes — and establish what can actually be proved.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

THE DRAFT FIGURE IS CORRECT. THE SURVEY STILL ISN’T

quantri — Wed, 23 Sep 2026 01:58:49 +0000

The vessel was alongside. Cargo operations had just finished. The weather was cooperative, the draft marks were clearly visible, and the vessel’s figures were ready for review.

On the surface, nothing looked unusual.

The drafts were read, recorded, and entered into the calculation. The final cargo quantity fell comfortably within the expected range. Everything appeared clean and routine.

Yet the surveyor standing on deck was not entirely satisfied.

Not because any single draft reading was obviously wrong. The concern was more fundamental:

Was the vessel actually in a stable, settled condition at the moment those figures were taken?

This is where practical draft survey experience matters.

A draft survey is often reduced to a calculation exercise — read the marks, apply hydrostatic data, make the necessary corrections, and arrive at the cargo quantity.

The mathematics is important.

But it comes last.

The Vessel Comes Before the Calculator

A draft mark is not simply a number painted on the hull. It is an indication of how the vessel is sitting in the water at a particular moment.

That condition can be affected by trim, list, water density, vessel movement, and, importantly, what is still happening on board.

A vessel may appear steady while ballast is being transferred between tanks. She may still be settling after the final cargo operation. A few centimetres at several draft marks may look insignificant individually, but across a large vessel, they can materially influence the calculated displacement and cargo quantity. and, ultimately, the calculated cargo quantity.

This is why an experienced surveyor does not simply read the marks, complete the worksheet, and leave.

He looks at what the vessel is doing.

Ballast Can Quietly Change the Picture

Ballast transfer is normal vessel operation. The issue is not whether ballast was moved, but when and how that movement relates to the survey condition.

If the initial and final conditions are not reasonably stable, the calculation may be mathematically correct while the comparison between the two conditions becomes less reliable.

Sometimes the important information is not in the hydrostatic tables but in a straightforward conversation with the Chief Officer:

Which ballast tanks were adjusted?
When did the transfer stop?
Was the vessel still settling?
Were there any trim or stability adjustments immediately before the draft readings?

These are ordinary questions on board. But the answers can determine how much confidence a surveyor should place in the final figure.

Water Density Is Measured, Not Assumed

A ship does not float in a textbook environment.

Water density can vary between locations and even within the same port, particularly where tidal or river influence is present.

The surveyor therefore needs to consider where the sample was taken, when it was taken, and whether it reasonably represents the water supporting the vessel during the survey.

A density value can be entered perfectly into the calculation sheet.

That does not automatically make the observation behind it reliable.

Hydrostatic Data Cannot Replace Field Judgement

Hydrostatic tables, displacement data, correction factors, and interpolation provide the technical foundation of a draft survey.

But they cannot tell the surveyor whether the vessel was physically ready to be measured.

That comes from observation.

Sometimes the relevant detail never appears in the final calculation: a ballast pump still running, a vessel continuing to settle, an unexpected trim change, an uncertain density reading, or an operational event between the initial and final drafts.

These are not necessarily errors.

They are physical conditions that need to be understood before the final result can be given appropriate weight.

The Final Figure Is Only the Result

Cargo interests want the tonnage.

The vessel wants the figure.

The terminal needs the clearance.

But the surveyor’s responsibility begins before the number appears on the report.

The real task is to establish whether the vessel was in a physical condition from which that number could reasonably be derived.

A draft survey is therefore not simply an arithmetic exercise.

It is a measurement of a vessel’s condition at a particular moment.

The figures matter. But before trusting the figures, a surveyor must understand the condition that produced them.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

BUNKERING SURVEY – WHEN ONBOARD FIGURES NEED TO BE VERIFIED ON SITE

quantri — Sun, 20 Sep 2026 02:00:52 +0000

In vessel operations, a Bunker ROB Survey is commonly carried out when a vessel takes bunkers, changes charterers, or is delivered or redelivered. The surveyor’s role is not simply to record the quantity of fuel onboard, but to establish the ROB at a specific point in time based on an appropriate measurement method and supporting documentation.

The Case

During a bunker survey, the surveyor was appointed to determine the quantity of fuel remaining onboard before and after bunkering.

Before taking measurements, the surveyor checked the fuel tank list, tank condition, sounding pipes, tank calibration tables and information relating to any internal fuel transfer onboard.

ROB was measured for each relevant tank under the actual onboard conditions. Sounding readings were recorded together with fuel temperature and cross-checked against the tank calibration table to determine the corresponding volume.

One critical factor in this case was the timing of the measurement.

The pre-bunkering ROB must represent the fuel condition at the agreed measurement time before bunkering commences. If the vessel continues consuming fuel or transferring fuel between tanks during this period, such activities must be recorded to avoid using figures representing different operational conditions in the subsequent calculation.

Verification After Bunkering

After completion of bunkering, the surveyor carried out a further ROB measurement of the relevant tanks.

The post-bunkering figures were cross-checked against:

Pre-bunkering ROB;
Quantity delivered as stated in the Bunker Delivery Note;
Fuel consumption during the relevant period;
Any internal fuel transfers between tanks;
Fuel temperature and measurement conditions at the time of survey.

In principle, the post-bunkering ROB should be reasonably explainable through the relationship of pre-bunkering ROB + bunker quantity received – relevant fuel consumption or transfer.

Where a discrepancy is identified, the surveyor should not immediately conclude that a bunker shortage has occurred. The measurement method, timing, fuel temperature, tank calibration data, internal transfers and relevant operational records should first be reviewed.

The Value of the Survey

In practice, the Bunker Delivery Note is not the sole basis for determining the actual ROB onboard. The BDN records the delivered quantity under the delivery documentation, while the ROB Survey establishes the quantity of fuel physically remaining onboard at the time of survey.

For On-Hire, Off-Hire or Redelivery surveys, bunker figures established at the relevant handover point may become an important basis for reconciliation between Owners and Charterers.

Therefore, the value of a Bunker ROB Survey does not lie solely in the final figure. It lies in the chain of evidence supporting that figure: the measurement time, measurement method, onboard conditions, individual tank readings, supporting documents and any irregularities observed during the survey.

Observe – Measure – Record – Reconcile.
Evidence first. Conclusion second.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

AFTER THE COLLISION — WHAT DOES THE SURVEYOR NEED TO PROVE?

quantri — Tue, 15 Sep 2026 08:51:38 +0000

From visible damage to evidence of impact, extent, and consequence.

After a collision, the first question is usually simple:

Where is the damage?

For an experienced Marine Surveyor, that is only the starting point.

A dented shell plate, a scuff mark, a distorted bulwark, or a bent handrail may be immediately visible.

But seeing damage is not the same as understanding it.

After two decades attending marine casualties, one lesson remains constant: the value of a collision survey is not measured by how many defects are listed, but by how well the physical evidence is preserved, documented, and placed in the context of the casualty.

DAMAGE DOES NOT EXPLAIN ITSELF

A fresh indentation does not, by itself, reveal the angle or mechanism of impact.

A paint transfer does not identify the contacting vessel.

A distorted handrail does not tell us how far the impact travelled into the structure.

The Surveyor therefore has to look beyond what is immediately visible.

Where exactly is the damage?

What is the direction and pattern of deformation?

Do the contact marks follow a consistent direction?

Is there corresponding damage to the internal structure?

Most importantly:

Is the condition actually attributable to the collision under investigation?

A previous repair can alter the appearance of a damaged area. A few hours of cutting, welding, cleaning, or painting can permanently change the physical evidence.

That is why, in casualty work, the timing of attendance can be as important as the technical examination itself.

MORE PHOTOGRAPHS DO NOT MEAN MORE EVIDENCE

After a casualty, photographs are usually taken in abundance.

But hundreds of photographs do not necessarily create a strong evidential record.

A close-up may show the dent.

A wider photograph may show its location.

The survey record must connect the two.

Where is it? How extensive is it? What exactly was observed?

Dimensions, deformation characteristics, contact marks, and relevant surrounding conditions should be recorded before they are altered by cleaning, repair, or normal vessel operations.

Previous condition records can also become important benchmarks when assessing whether a particular condition is new or pre-existing.

A professional survey report should not simply state:

“Damage was observed.”

It should enable a person who was not present at the scene to understand what was observed, where it was found, how extensive it was, and what evidence supports the observation.

OBSERVATION IS NOT CONCLUSION

This is one of the most important boundaries in casualty surveying.

A mark may be consistent with a particular contact mechanism.

That does not mean the entire collision can be reconstructed from that mark alone.

Damage may appear consistent with recent impact.

That does not automatically establish that every item of damage arose from the same event.

Where the evidence is insufficient, the report should say so.

Where further examination is required, it should be identified.

This is not excessive caution.

It is professional discipline — knowing precisely how far the evidence allows the Surveyor to go, and where it does not.

A good Surveyor does not try to turn every observation into a definitive conclusion.

DAMAGE IS ONLY THE BEGINNING

Once the physical damage has been established, another question becomes critical:

Can the vessel safely continue in service?

Has watertight integrity been affected?

Are ballast tanks, cargo spaces, or machinery spaces involved?

Is temporary repair required?

Are operational restrictions or further examinations necessary?

The Surveyor does not replace Class, Flag, the Master, or the vessel’s technical management in decisions falling within their respective authority.

The Surveyor’s role is different:

to establish and communicate the factual condition clearly enough for the responsible parties to make informed decisions.

That distinction matters.

BEFORE THE SCENE DISAPPEARS

Following a collision, the pressure to repair is immediate.

Steel is cropped.

Bulwarks are renewed.

Paint is removed and reapplied.

Temporary repairs disappear.

The vessel moves on.

Days later, a seemingly simple question can become surprisingly difficult:

“What did the damage actually look like before repairs began?”

Without a contemporaneous survey record, the answer may be reduced to memories, scattered photographs, and assumptions made after the event.

That is why early attendance matters.

Not simply to confirm that damage exists, but to document the condition before the evidence changes.

CONCLUSION

So, what does the Surveyor really need to establish?

Not, in the first instance, who was at fault.

Not immediately, what the final repair bill will be.

The starting point is more fundamental:

What do we actually know from the scene?

What was observed?

Where was it observed?

What was its extent?

What evidence supports it?

What can be established with reasonable confidence?

And what remains subject to further investigation?

A good collision survey does not make a casualty simple.

It makes what is known, what is supported, and what remains uncertain much harder to confuse.

Because steel can be repaired.

Original evidence cannot always be recovered.

VM CONTROL | Independent Marine Surveying & Forensic Evidence Services

Observe – Measure – Record – Report.

Evidence first. Conclusion second.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

⚓ WHEN FUEL FIGURES LOOK RIGHT — BUT OPERATIONS STILL LOSE MONEY

quantri — Fri, 11 Sep 2026 02:45:04 +0000

Why accurate numbers do not always mean effective fuel control.

The Bunker Delivery Note is correct.
The ROB figures reconcile.
The noon reports and engine logs are internally consistent.
Fuel consumption remains within the charter-party allowance.

On paper, the voyage looks like a textbook success.

Yet when the voyage is reviewed at the office, the commercial result can tell a different story.

This is one of the less obvious challenges in marine fuel management:

A fuel figure can be accurate without necessarily being operationally meaningful.

THE “CLEAN FILE” AND THE FIELD REALITY

Consider a situation familiar to anyone managing bunkering from either the deck or the office.

A vessel completes bunkering alongside. An independent Surveyor attends on board, verifies the relevant tanks, records soundings or ullages, checks temperatures, refers to the applicable tank calibration data and completes the quantity calculation.

The BDN is reviewed. The figures reconcile. The parties sign.

The file looks clean.

Then the vessel sails.

A few days into the voyage, the operator notices that the fuel position is not developing exactly as expected. Daily consumption appears reasonable, yet the remaining fuel position begins to show a variance against the operational forecast.

The first question is straightforward:

“Was the bunker quantity wrong?”

Not necessarily.

The original measurement may have been properly carried out, and the calculation may have been correct for the physical conditions recorded at that time.

The difficulty is that a bunker figure represents a physical condition at a particular moment.

After sailing, conditions change:

• Fuel temperature changes
• Tank levels change
• Fuel may be transferred between tanks
• Trim and list may change
• Engine load varies
• Weather and sea conditions change

The original number has not necessarily become wrong.

But it may no longer be sufficient, by itself, to explain what is happening.

FUEL DATA NEEDS CONTEXT

Modern ship operations generate a continuous stream of fuel-related data: bunker quantities, ROB, noon reports, engine logs, flow-meter readings, distance travelled, hours underway, engine load, drafts and weather conditions.

The principle is straightforward:

Fuel consumption cannot always be understood from tonnes alone.

Two vessels may record similar fuel consumption while operating under very different conditions. One may benefit from favourable weather and stable loading conditions, while another may face adverse seas, manoeuvring, waiting time or significant changes in draft.

The same principle applies to bunker measurements.

The measurement matters. But the conditions surrounding that measurement are part of the factual record too.

WHAT A SURVEYOR SEES THAT A SPREADSHEET DOES NOT

During a bunker attendance, an experienced Surveyor does not simply collect numbers for an Excel template.

They look at the physical situation behind those numbers:

• Are the relevant tanks clearly identified?
• Is the vessel’s trim and list properly recorded?
• Are readings taken under reasonably stable conditions?
• Is fuel being transferred during the operation?
• Are temperature readings properly recorded?
• Which calibration data has been used?
• Are there unusual conditions that should be documented?

These details may seem minor while the operation is taking place.

Months later, they may become important.

When a fuel variance or performance question arises, the quality of the original field record determines how much of the investigation can be traced back to facts rather than assumptions.

This is one of the less visible values of independent marine surveying.

The Surveyor is not only recording the final figure. The Surveyor is recording the circumstances from which that figure was established.

ACCURACY IS ONLY THE BEGINNING

A BDN can be accurate.
A bunker survey can be properly conducted.
A noon report can be correctly completed.
An engine log can be internally consistent.

And yet, these records may still fail to explain why the vessel’s fuel position later differs from expectations.

That is why fuel control should not stop at reconciliation.

The more useful question is:

“Can we trace this number back to the physical and operational conditions that produced it?”

If the answer is yes, the data becomes much more useful for voyage analysis, charter-party review, performance monitoring and subsequent investigation.

THE VALUE OF AN INDEPENDENT BASELINE

An Independent Bunker Survey does not explain everything that happens after the vessel sails.

It should not.

Its role is to establish a reliable, field-verified baseline at a defined point in time.

That baseline gives operators something to work backwards from when questions arise later:

What was measured?
Which tanks were involved?
Under what conditions?
What records supported the calculation?
What was actually observed at the time?

These simple questions can become the starting point for separating a measurement issue from an operational issue.

And that distinction matters commercially.

THE NUMBER IS NOT THE WHOLE STORY

Marine fuel management is about more than getting the arithmetic right.

It is about understanding what the number represents, when it was established, how it connects with other operational records, and whether the surrounding circumstances have been properly captured.

At VM CONTROL, we view marine surveying as more than a routine measurement exercise.

We build field-verified factual records that allow important figures to be traced, checked and understood within their operational context.

Because in marine operations, the most expensive problem is not always a wrong calculation.

Sometimes, it is a correct number that nobody knows how to interpret.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

THE ROLE OF MARINE SURVEYING IN VESSEL REDELIVERY

quantri — Sat, 05 Sep 2026 02:02:13 +0000

Recording the Actual Condition. Preserving the Evidence.

When a charterparty comes to an end, vessel redelivery is not simply a handover procedure.

It is the point at which the actual condition of the vessel, the remaining fuel onboard and any changes during the charter period may need to be established and compared.

Later, these records may become relevant to a claim, cost allocation or contractual dispute.

This is where a Full Off-Hire Survey becomes important.

A proper survey is not simply about answering:

“What condition is the vessel in?”

The more useful questions are:

What exactly did the Surveyor observe?
Where was it observed?
What was the measured extent?
How was it measured?
Was the condition already recorded during On-Hire?
What photographs, timestamps or supporting records are available?

That is where the practical value of a survey report lies.

WHAT IS A FULL OFF-HIRE SURVEY?

In practice, a Full Off-Hire Survey is generally carried out at or around the time of vessel redelivery.

The exact scope depends on the charterparty and the agreed instructions, but it commonly covers two main areas:

Bunker Survey – determination of the remaining fuel onboard (ROB).

Condition Survey – recording the vessel’s observable condition at the time of redelivery.

Bunker Survey

ROB is not simply a number taken from a sounding tape.

The Surveyor needs to consider factors such as:

Sounding / Ullage;
Temperature;
Density;
Trim / List;
Tank calibration tables;
Fuel condition;
Time of measurement;
Relevant bunker documentation.

In actual operations, surface turbulence, entrained air, thermal stratification and incomplete settling may affect the reliability of measurements.

Therefore:

An ROB figure without the measurement method and measurement conditions is only a number. It is not, by itself, a complete measurement record.

The objective is not simply to produce a figure.

The objective is to produce a figure that can be traced, checked and properly understood by the parties involved.

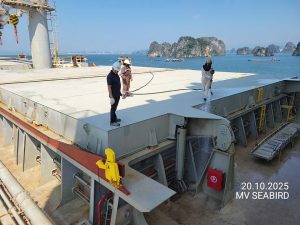

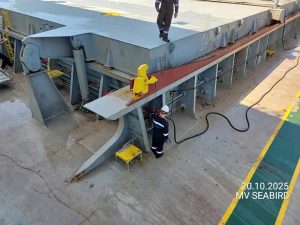

CONDITION SURVEY – MORE THAN FINDING DAMAGE

Depending on the agreed scope, a Condition Survey may cover areas such as:

Deck;
Cargo Holds;
Hatch Covers;
Machinery spaces;
Accommodation;
Anchoring and mooring equipment;
Safety-related equipment.

But the first question should not simply be:

“Is there damage?”

The more useful question is:

“Where is the damage, what are its characteristics, and can it be compared with the condition recorded before the charter?”

For example: “Dent observed on starboard bulwark.”

That is an observation.

But it does not tell us:

which frame the dent is located at;
its dimensions;
the condition of the surrounding area;
whether there are indications that it is recent or pre-existing;
whether it was already recorded during On-Hire.

Where possible, the record should include the frame number, exact location, dimensions, photographs, timestamp and relevant surrounding observations.

That turns a simple observation into a much more useful technical record.

OBSERVATION IS NOT ALWAYS EVIDENCE

This distinction matters in marine surveying.

A Surveyor may observe a scratch.

That is an observation.

But the observation alone does not establish:

when it occurred;
how it occurred;
who caused it;
or whether it constitutes a breach of a contractual obligation.

If there are technical indications such as unoxidized scraping marks, these should be recorded carefully, together with the location, dimensions, photographs and surrounding condition.

The Surveyor should always distinguish between:

What was observed

and

What can actually be established.

A report should not turn an observation into a conclusion that goes beyond the available evidence.

ON-HIRE AND OFF-HIRE – THE VALUE IS IN THE COMPARISON

The On-Hire Survey records the vessel’s condition when the Charterer takes delivery.

The Off-Hire Survey records the vessel’s condition when the Charterer redelivers her.

Together, these records provide an important baseline for identifying and assessing changes during the charter period.

Without a reliable baseline, determining whether a condition found at redelivery is new or pre-existing becomes much more difficult.

The discussion can then become dependent on:

memory;
isolated photographs;
incomplete records;
or different interpretations of the same damage.

A properly prepared survey record brings the discussion back to measurable facts:

Where exactly?

What size?

Was it already there?

Is there a difference from the On-Hire record?

What evidence supports the observation?

THE ROLE OF THE SURVEYOR

A Surveyor does not replace the Owner, Charterer or their legal representatives in determining contractual liability.

The Surveyor’s role is more fundamental:

OBSERVE

Record what is actually present at the time of attendance.

MEASURE

Measure dimensions, quantities or other relevant parameters where practicable and appropriate.

RECORD

Build a structured record supported by photographs, locations and relevant data.

REPORT

Present the findings objectively, without extending the conclusion beyond what the available evidence supports.

A good survey report should allow someone who was not present onboard to understand what the Surveyor actually saw on that day.

CONCLUSION

The value of a Full Off-Hire Survey is not measured by the number of pages in the report.

Its value becomes clear later, when a claim arises and the parties need to go back to the record and establish:

What was observed.

What was measured.

What was recorded.

What can be compared with the On-Hire condition.

And, equally important:

What the available evidence does not allow us to conclude.

Because when a dispute arises, the important question is no longer:

“Who remembers what?”

It is:

“What can actually be established from the records made at the time?”

At VM CONTROL, our approach is built around four basic principles:

OBSERVE – MEASURE – RECORD – REPORT

We do not determine contractual liability on behalf of the parties.

We focus on recording the actual condition onboard, collecting relevant technical data and producing an independent survey record that can be traced, reviewed and relied upon by the parties involved.

🚛⚓EVERY GATEWAY – ONE SPEED

📍 Ho Chi Minh City ➔ Ba Ria – Vung Tau ➔ Cai Mep ➔ Quy Nhon ➔ Da Nang ➔ Hai Phong….

⚡ 4 HOURS: On-site Attendance ⚡ 12 HOURS: Survey Completion ⚡ 24 HOURS: Certificate Issuance

CONTACT INFORMATION
VIET MARINE CONTROL JOINT STOCK COMPANY – VM CONTROL

📍 Address: 1831/10/9 Huynh Tan Phat Street, Quarter 2, Nha Be Commune, Ho Chi Minh City, Vietnam
📞 Hotline: +84 981 600 440 / +84 918 114 742
🌐 Website: www.vietmarinecontrol.com.vn
📧 Email: survey@vietmarinecontrol.com.vn
🔵 Linkedin: www.linkedin.com/in/vm-control-234252386
